Description

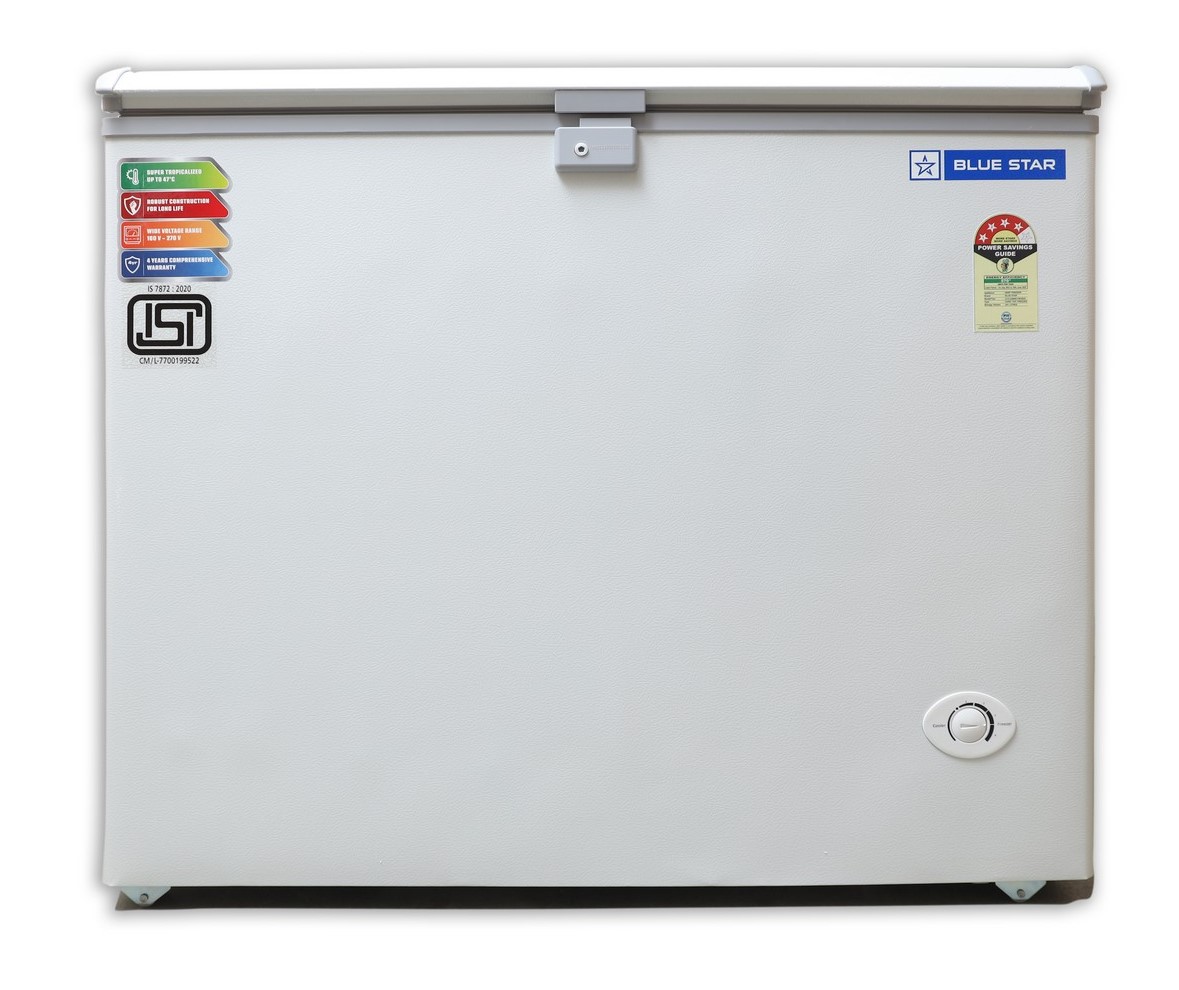

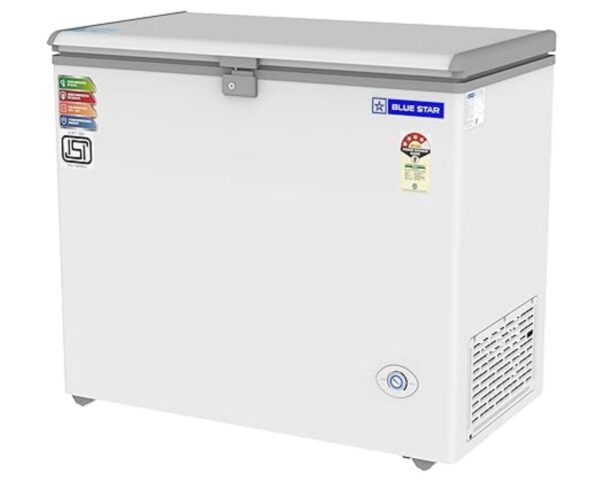

Blue Star Deep Freezer 215 Litres
The Blue Star NEYW Series CF4-230NEYW hard top deep freezer is a 215-litre commercial freezer includes a 4-year comprehensive warranty and free delivery within working days. The Blue Star CF4-230NEYW features 4-star energy rating and stabilizer-free operation across a wide voltage range of 160-260V.
Technical Specifications
| Specification | Details |
|---|---|
| Item Length (mm) | 955 |
| Item Width (mm) | 571 |
| Item Height (mm) | 842 |
| Package Length (mm) | 1016 |
| Package Width (mm) | 630 |
| Package Height (mm) | 886 |
| Package Weight (kg) | 39 |
| Product Volume | 215 |
| Refrigerant | R600a |
| Defrost Type | Manual Defrost |
| Number of Doors | 1 |
| Door Mechanism | Swing/ Hinge Door |
| Number of Compartments | 1 |
| Lock Present | Yes |
| Inbuilt Lighting | no |
| Defrost Water Drain Present | Yes |
| Convertible | yes |
| Wattage (watts) | 130 |
| Manufacturer Hotline Number | 18002091177 |
| Power Requirement (Volts) | 230V/50Hz/1Ph |
| Stabilizer Free Operation | Yes |
| Wheels Type | 4 Uni-Directional Rollers |
| Wheels Present | yes |
| Number of Baskets / Shelves | 1 |
| Basket / Shelf type | Plastic |
| Inner Liner Material | Embossed |
| Country of Origin |
Look, most deep freezers just freeze stuff. The Blue Star NEYW Series CF4-230NEYW actually thinks about how you work. The convertible technology means this Blue Star deep freezer can switch between regular cooling and deep freezing – pretty much like having two appliances in one compact unit. Which, honestly, makes sense for businesses that need flexibility.
The Quadracool technology in this Blue Star CF4-230NEYW isn’t just marketing speak. It actually cools from four sides instead of the usual single-point cooling you get with cheaper freezers. So your products at the back don’t turn into ice blocks while the front stuff barely gets cold. Fair enough approach, really.
What Made Us Pause and Nod
The anti-bacterial gasket caught our attention first. Most deep freezers have gaskets you can’t remove, which means cleaning becomes this whole ordeal. The Blue Star NEYW Series lets you pop it off, clean it properly, and put it back. Small thing, but it matters when you’re dealing with food safety regulations.
That frosted inner lid design is actually clever. Prevents condensation from dripping back into your stored products, which happens more often than you’d think with standard deep freezers. The Blue Star CF4-230NEYW basically solved an annoying problem most people just accept as normal.
Built for the Way Real People Work
This Blue Star deep freezer fits into spaces where bigger units won’t. At 955mm length, it’s compact enough for smaller shops, restaurants, or even home businesses. The 215-litre capacity gives you decent storage without taking over your entire floor space. Plus, those roller wheels mean you can actually move the Blue Star CF4-230NEYW around when needed.
The stabilizer-free operation across 160-260V means you don’t need extra equipment in areas with voltage fluctuations. The Blue Star NEYW Series handles power variations that would damage other freezers. Saves money and headaches, basically.
Where It Fits, Literally and Functionally
The Blue Star CF4-230NEYW measures 955 x 571 x 842 mm, so it fits through standard doorways and doesn’t need special installation. The 39kg weight means two people can handle it without equipment. Package dimensions are slightly larger at 1016 x 630 x 886 mm, so plan your delivery route accordingly.
Space-wise, this Blue Star deep freezer works in retail stores, small restaurants, medical facilities, or home-based businesses. The compact footprint means it doesn’t dominate smaller spaces, but the 215-litre capacity still handles serious storage needs. The hard top design stacks well if you need multiple units.
The Real-World Experience
Daily operation with the Blue Star NEYW Series is straightforward. The manual defrost system means you control when and how defrosting happens – no automatic cycles interrupting your workflow. The drain system makes defrosting less messy than older freezer designs. Temperature control is simple, no complicated digital displays to confuse staff.
The Blue Star CF4-230NEYW runs quietly enough for front-of-house use. The 130-watt power consumption keeps electricity costs reasonable, and the 4-star rating means it meets current efficiency standards. Loading and unloading is easy with the swing-hinge door and included plastic basket for organization.
Hidden Wins That Actually Matter
Voltage Tolerance That Actually Works
The Blue Star NEYW Series operates across 160-260V without external stabilizers. Most commercial freezers need voltage regulators in areas with power fluctuations, adding cost and complexity. This Blue Star deep freezer handles voltage swings that would damage standard units.
Real-world benefit: fewer service calls, lower installation costs, and reliable operation in areas with unstable power supply. The Blue Star CF4-230NEYW keeps running when other freezers shut down or get damaged.
Convertible Technology Flexibility
The convertible feature lets you switch between cooling and freezing modes based on current needs. During slower periods, run it as a cooler to save energy. When you need deep freezing capacity, switch modes without buying additional equipment.
This Blue Star deep freezer adapts to seasonal business changes or varying product requirements. One unit handles multiple temperature needs, reducing equipment investment and floor space requirements.
Four-Side Cooling Distribution
Quadracool technology in the Blue Star CF4-230NEYW ensures even temperature throughout the cabinet. Standard freezers cool from one point, creating hot and cold spots that affect product quality and energy efficiency.
Even cooling means consistent product quality, reduced energy waste, and longer compressor life. The Blue Star NEYW Series maintains uniform temperatures that protect your inventory investment.
Removable Anti-Bacterial Gasket
The gasket removes completely for thorough cleaning and sanitization. Most deep freezers have fixed gaskets that trap bacteria and odors over time. The Blue Star deep freezer lets you maintain proper hygiene standards.
Critical for food service businesses, medical storage, or any application where cleanliness matters. The Blue Star CF4-230NEYW meets health department requirements that fixed-gasket units can’t achieve.
Compact Footprint, Full Capacity
The Blue Star NEYW Series delivers 215 litres of storage in a footprint smaller than most 200-litre units. Smart internal design maximizes usable space without increasing external dimensions.
More storage per square foot of floor space means better return on your real estate investment. The Blue Star deep freezer fits where larger units won’t, opening up installation possibilities.
Mobility Without Compromise
Four uni-directional rollers let you move the Blue Star CF4-230NEYW for cleaning, rearrangement, or relocation. Most commercial freezers require dollies or multiple people to move safely.
Built-in mobility means easier maintenance, flexible layout changes, and simpler deep cleaning. The Blue Star deep freezer adapts to changing space requirements without professional moving services.
Install It, Use It, Don’t Think About It Again
Installation of the Blue Star NEYW Series is basically plug-and-play. No special electrical requirements beyond standard 230V single-phase power. The stabilizer-free design eliminates additional wiring or voltage regulation equipment. Just position it, plug it in, and let it stabilize for a few hours before loading.
The Blue Star CF4-230NEYW comes with clear setup instructions and doesn’t require professional installation for basic use. The roller wheels make positioning easy, and the compact size fits through standard doorways. Ongoing maintenance involves periodic defrosting and basic cleaning – nothing complicated or expensive.
The Brand, The Backstory
Blue Star has been in the cooling business since 1943, starting with commercial air conditioning and expanding into refrigeration. They’re not newcomers trying to figure out how cooling works – they’ve been solving temperature control problems for over 80 years. The Blue Star name appears on everything from small freezers to massive industrial cooling systems.
In the commercial refrigeration space, Blue Star competes directly with established brands but often wins on price-performance ratio. The Blue Star NEYW Series represents their approach: solid engineering, practical features, and competitive pricing. They understand that businesses need equipment that works reliably without breaking budgets.
Picking the Right Deep Freezer
Capacity matters, but so does footprint. The Blue Star CF4-230NEYW offers 215 litres in a compact design – good for businesses that need storage but can’t sacrifice floor space. Consider your daily volume, peak storage needs, and available space before deciding on capacity.
Energy efficiency affects operating costs over time. The 4-star rating on this Blue Star deep freezer means reasonable electricity consumption, but check your local power rates to calculate actual costs. The stabilizer-free operation of the Blue Star NEYW Series saves money in areas with unstable power supply.
What’s Under the Hood
The Blue Star CF4-230NEYW uses R600a refrigerant, which is environmentally friendly and efficient. The manual defrost system gives you control over maintenance timing, while the embossed inner liner resists scratches and cleans easily. The 130-watt power consumption balances performance with efficiency.
Quadracool technology distributes cooling through four points instead of single-point systems used in basic freezers. This Blue Star deep freezer maintains more consistent temperatures and reduces energy waste. The convertible feature uses smart controls to switch between cooling and freezing modes efficiently.
Scenarios It Just Crushes
Small restaurants love the Blue Star NEYW Series for prep storage and overflow capacity. The convertible feature lets them switch between frozen storage during busy periods and cooler mode for fresh ingredients during slower times. The compact size fits in tight kitchen spaces where larger units won’t work.
Medical facilities use the Blue Star CF4-230NEYW for vaccine storage, samples, and temperature-sensitive supplies. The consistent cooling and removable gasket meet hygiene requirements, while the lock provides security. The wide voltage range ensures reliable operation even with power fluctuations common in some medical facilities.
Keeping It Clean, Cold, and Problem-Free
Regular maintenance of the Blue Star deep freezer involves defrosting when ice buildup reaches about 6mm thickness. The drain system makes this process cleaner than older designs. Remove the anti-bacterial gasket monthly for thorough cleaning with mild detergent and warm water.
Clean the interior with food-safe sanitizer and check the door seal regularly for damage. The Blue Star CF4-230NEYW doesn’t require professional maintenance for routine care. Keep the exterior clean and ensure adequate ventilation around the unit. The roller wheels should be cleaned periodically to maintain smooth movement.
Compared to the Other Guys?
Most competing deep freezers in this price range offer basic freezing without convertible technology. The Blue Star NEYW Series gives you cooling and freezing modes in one unit, which competitors charge extra for or don’t offer at all. The Quadracool technology is uncommon in this price segment.
The stabilizer-free operation of the Blue Star CF4-230NEYW eliminates equipment costs that other brands require in areas with voltage fluctuations. The removable anti-bacterial gasket is rare in commercial freezers under ₹25,000. The Blue Star deep freezer delivers features typically found in more expensive units.
Is It Worth It? Let’s Talk ROI
At ₹20,990, the Blue Star NEYW Series costs less than many 200-litre freezers with fewer features. The convertible technology means you’re getting two appliances for the price of one. The energy efficiency and stabilizer-free operation reduce ongoing costs compared to less efficient units.
The 4-year comprehensive warranty protects your investment longer than standard 1-2 year warranties. The Blue Star CF4-230NEYW should pay for itself through energy savings and avoided equipment costs within the first year of operation. The compact design maximizes storage per square foot of expensive floor space.
FAQs — Because Everyone Asks
Q: How long does the Blue Star NEYW Series take to reach freezing temperature?
A: The Blue Star CF4-230NEYW typically reaches freezing temperature within 2-3 hours from startup, depending on ambient temperature and load. The Quadracool technology helps achieve consistent temperatures faster than single-point cooling systems.
Q: Can I convert between cooling and freezing modes while the unit is loaded?
A: Yes, the convertible technology in the Blue Star deep freezer allows mode switching with products inside, but temperature transition takes 1-2 hours. Plan conversions during slower periods for best results.
Q: What’s the actual usable storage space in the 215-litre capacity?
A: The Blue Star CF4-230NEYW provides approximately 190-200 litres of usable space after accounting for the basket and internal components. The embossed liner design maximizes available storage area.
Q: How often does this Blue Star deep freezer need defrosting?
A: Defrosting frequency depends on usage and humidity, but typically every 2-4 weeks. The Blue Star NEYW Series includes a drain system that makes defrosting cleaner and faster than older designs.
Q: Will the 160-260V range really work without a stabilizer?
A: Yes, the Blue Star CF4-230NEYW operates reliably across this voltage range without external stabilizers. This feature is tested and warranted by Blue Star for areas with power fluctuations.
Q: Can I stack items directly on top of this Blue Star deep freezer?
A: The hard top design supports moderate weight, but avoid heavy items that could damage the lid or affect door operation. The Blue Star deep freezer works best with clear top access for loading.
Q: How loud is the Blue Star NEYW Series during operation?
A: The Blue Star CF4-230NEYW operates quietly enough for front-of-house use in retail or restaurant environments. The compressor cycles normally but doesn’t create disruptive noise levels.
Q: What happens if the power goes out – how long will it stay cold?
A: The Blue Star deep freezer maintains freezing temperatures for 6-8 hours without power, depending on ambient temperature and how often the door opens. The insulation design helps preserve temperatures during outages.
Q: Can I use this Blue Star deep freezer outdoors or in unheated spaces?
A: The Blue Star CF4-230NEYW is designed for indoor use in controlled environments. Extreme temperatures, humidity, or weather exposure can damage components and void the warranty.
Q: How do I clean the removable anti-bacterial gasket properly?
A: Remove the gasket carefully, wash with warm water and mild detergent, rinse thoroughly, and dry completely before reinstalling. The Blue Star deep freezer gasket should be cleaned monthly for optimal hygiene.
Q: What’s included with the Blue Star NEYW Series purchase?
A: The Blue Star CF4-230NEYW includes the freezer unit, one plastic storage basket, user manual, and 4-year comprehensive warranty. Installation hardware and additional accessories are sold separately.
Q: Can I adjust the temperature settings for different products?
A: Yes, the Blue Star deep freezer has adjustable temperature controls for both cooling and freezing modes. The convertible technology allows optimization for different product storage requirements.
Q: How much clearance space does the Blue Star CF4-230NEYW need around it?
A: Allow at least 6 inches on all sides for proper ventilation and door operation. The Blue Star deep freezer needs adequate airflow to maintain efficiency and prevent overheating.
Q: Is the lock secure enough for commercial use?
A: The built-in lock provides basic security suitable for most commercial applications. For high-security environments, consider additional security measures beyond the standard Blue Star NEYW Series lock.
Q: What’s the difference between this and glass-top deep freezers?
A: The Blue Star CF4-230NEYW hard top design offers better insulation and security compared to glass-top models. Glass tops provide product visibility but typically use more energy and offer less security.
Q: Can I get replacement parts for the Blue Star deep freezer locally?
A: Blue Star maintains service networks across India with common replacement parts available through authorized dealers. The 4-year warranty covers most component failures during the coverage period.
Q: How does the manual defrost system work exactly?
A: Turn off the Blue Star CF4-230NEYW, remove products, and let ice melt naturally or use warm water to speed the process. The drain system channels water out, making cleanup easier than older freezer designs.
Q: Will this Blue Star deep freezer work with a generator during power outages?
A: Yes, the Blue Star NEYW Series works with generators that provide stable 230V power within the 160-260V operating range. Ensure your generator can handle the 130-watt power requirement plus startup surge.
Q: What’s the expected lifespan of the Blue Star CF4-230NEYW?
A: With proper maintenance, the Blue Star deep freezer should operate reliably for 8-12 years. The 4-year comprehensive warranty covers the most critical period, and Blue Star’s commercial-grade components are built for extended use.
Q: Can I use this for both commercial and home applications?
A: Absolutely. The Blue Star NEYW Series works well for home-based businesses, large families, or anyone needing substantial freezer capacity. The compact design and quiet operation suit both commercial and residential environments.
Q: How do I know if the convertible mode is working correctly?
A: Temperature changes should be noticeable within 1-2 hours of switching modes. The Blue Star CF4-230NEYW includes indicators for current mode, and you can verify performance with a separate thermometer if needed.
Q: What should I do if the Blue Star deep freezer isn’t cooling properly?
A: Check power supply, ensure adequate ventilation, verify door seals, and confirm temperature settings. If problems persist, contact Blue Star service through their hotline at 18002091177 for warranty support and troubleshooting.
