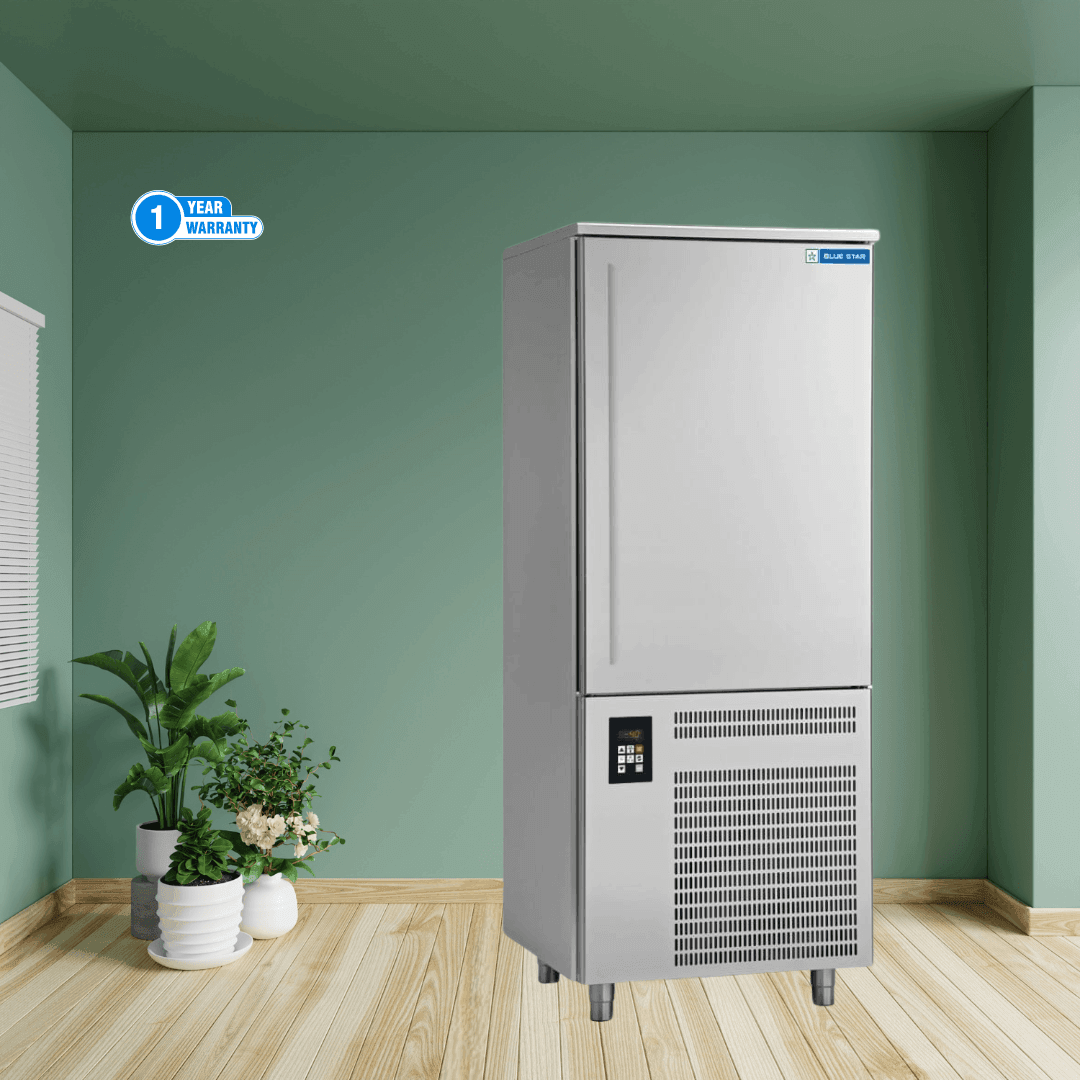

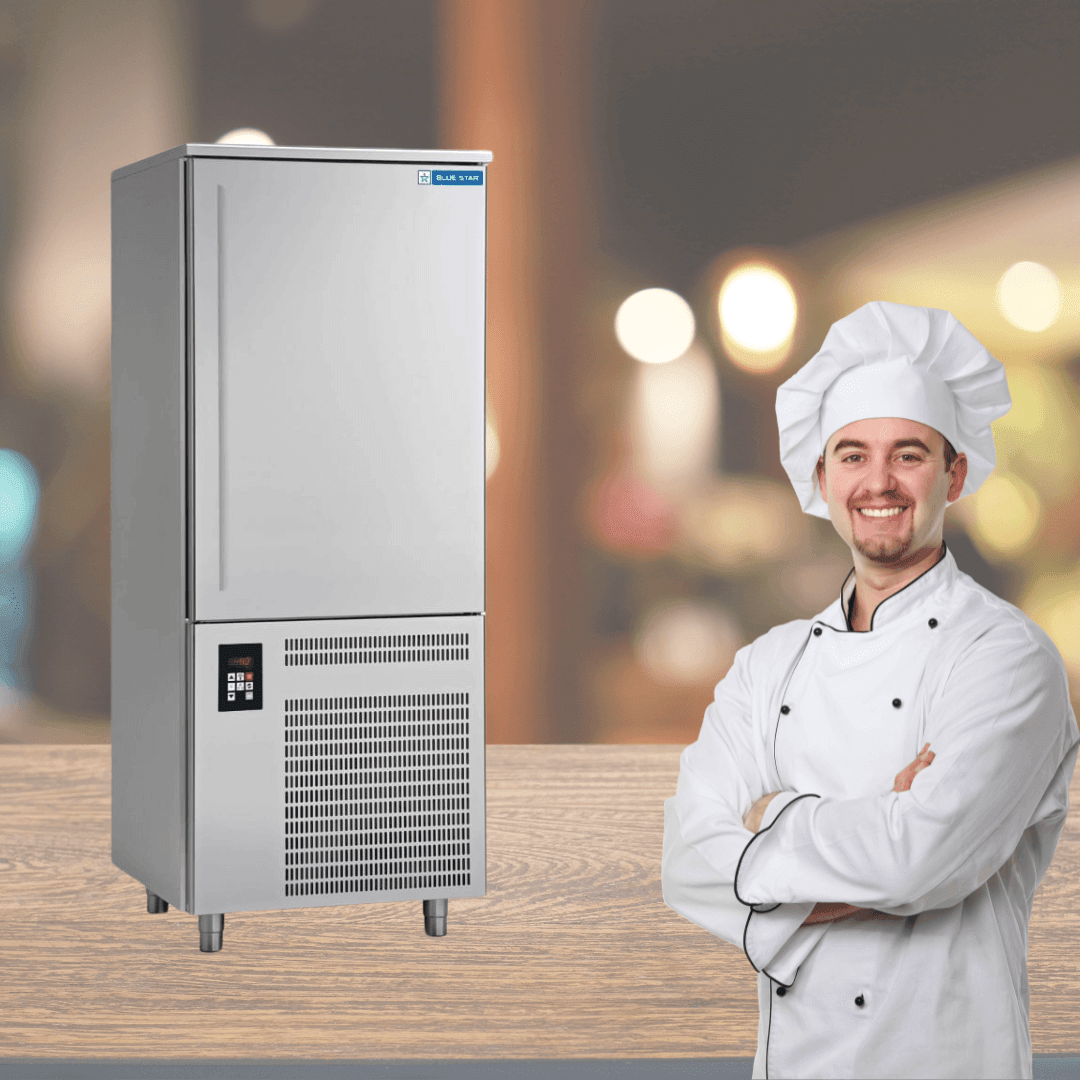

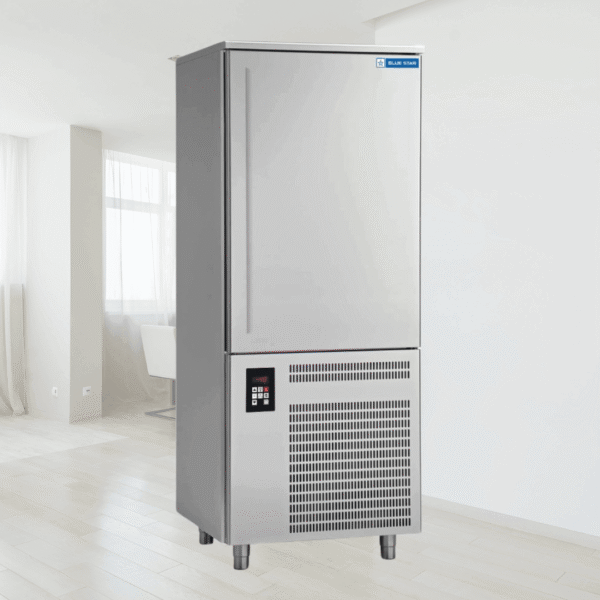

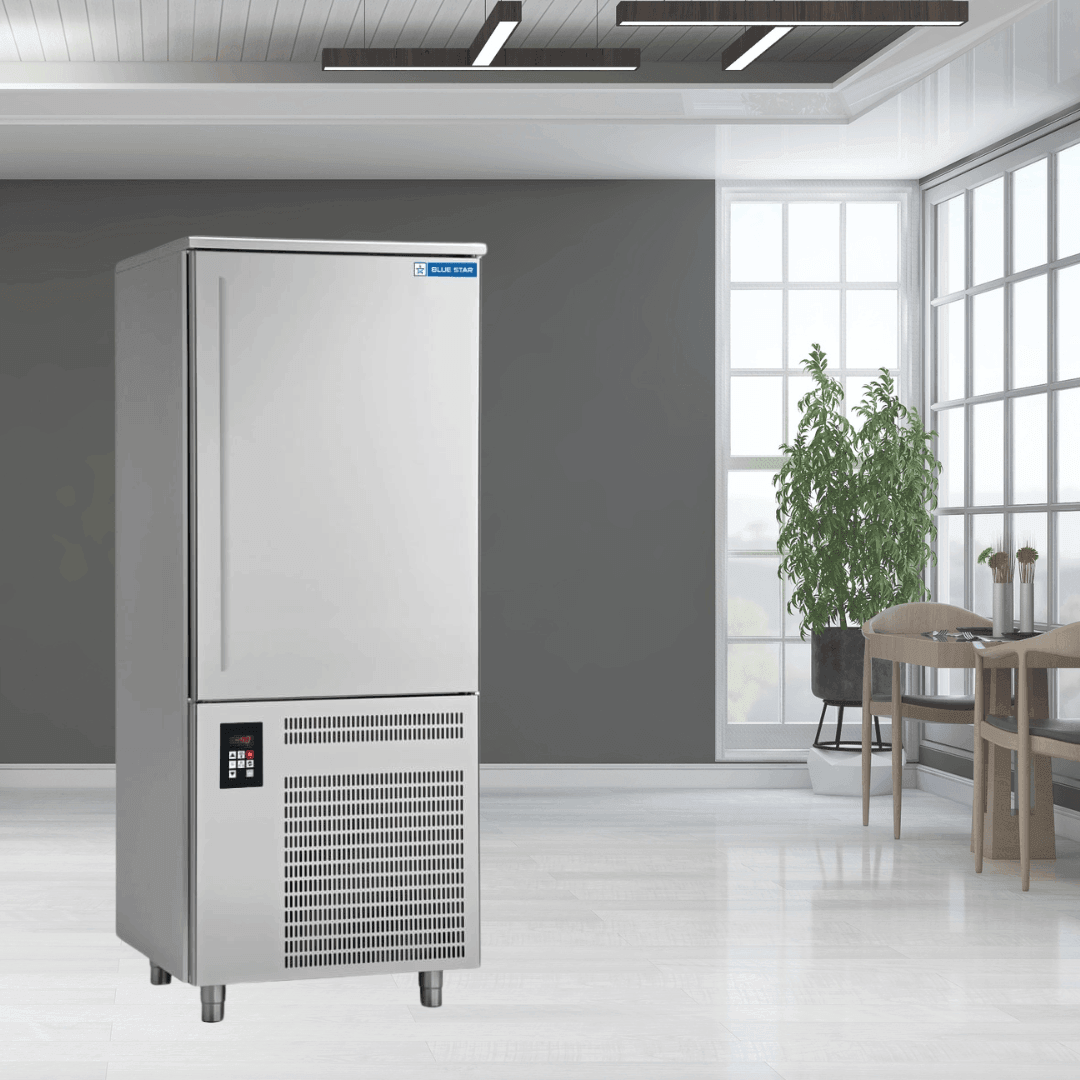

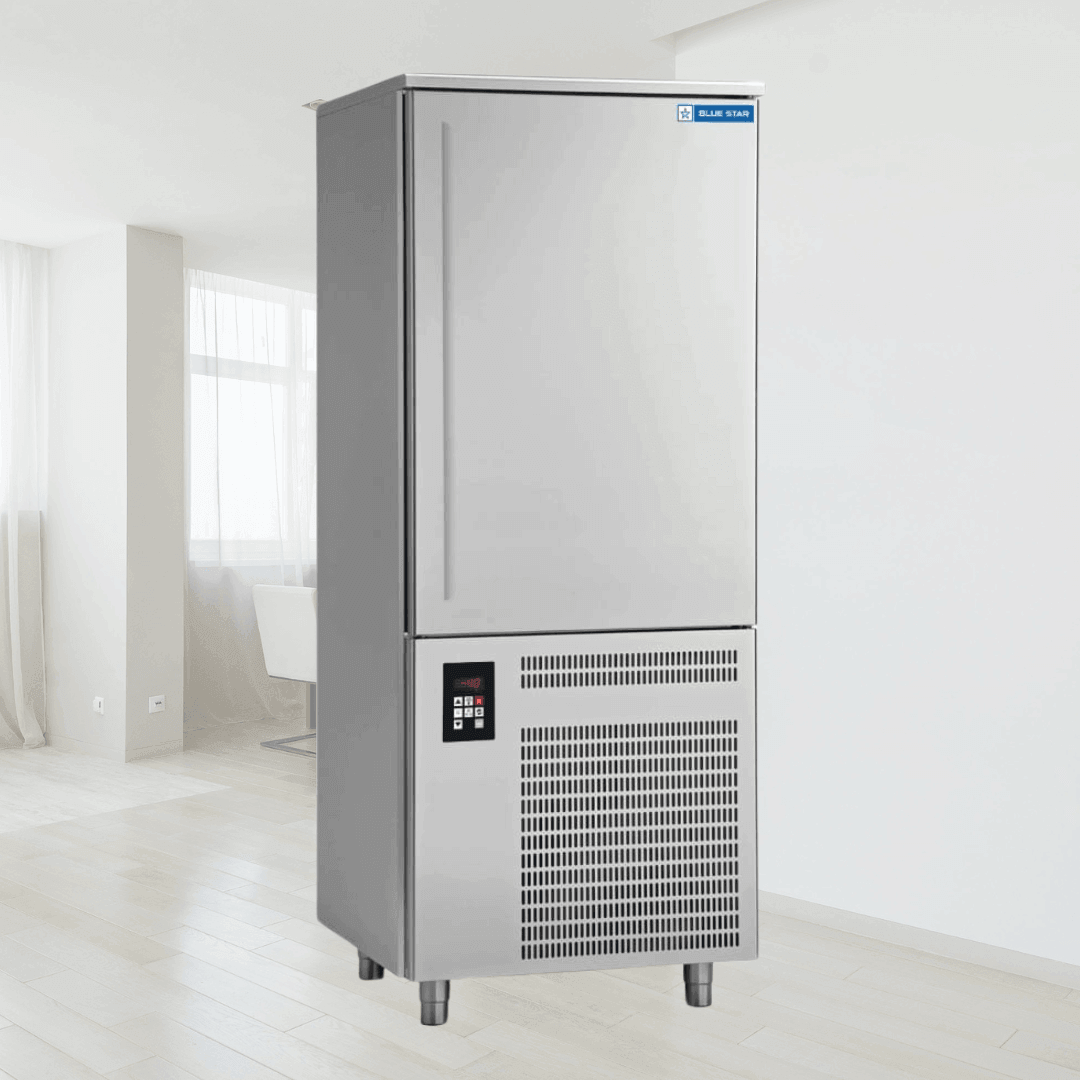

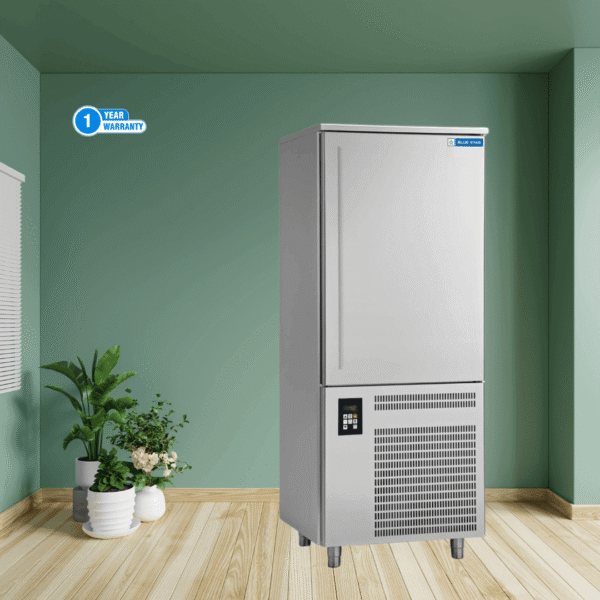

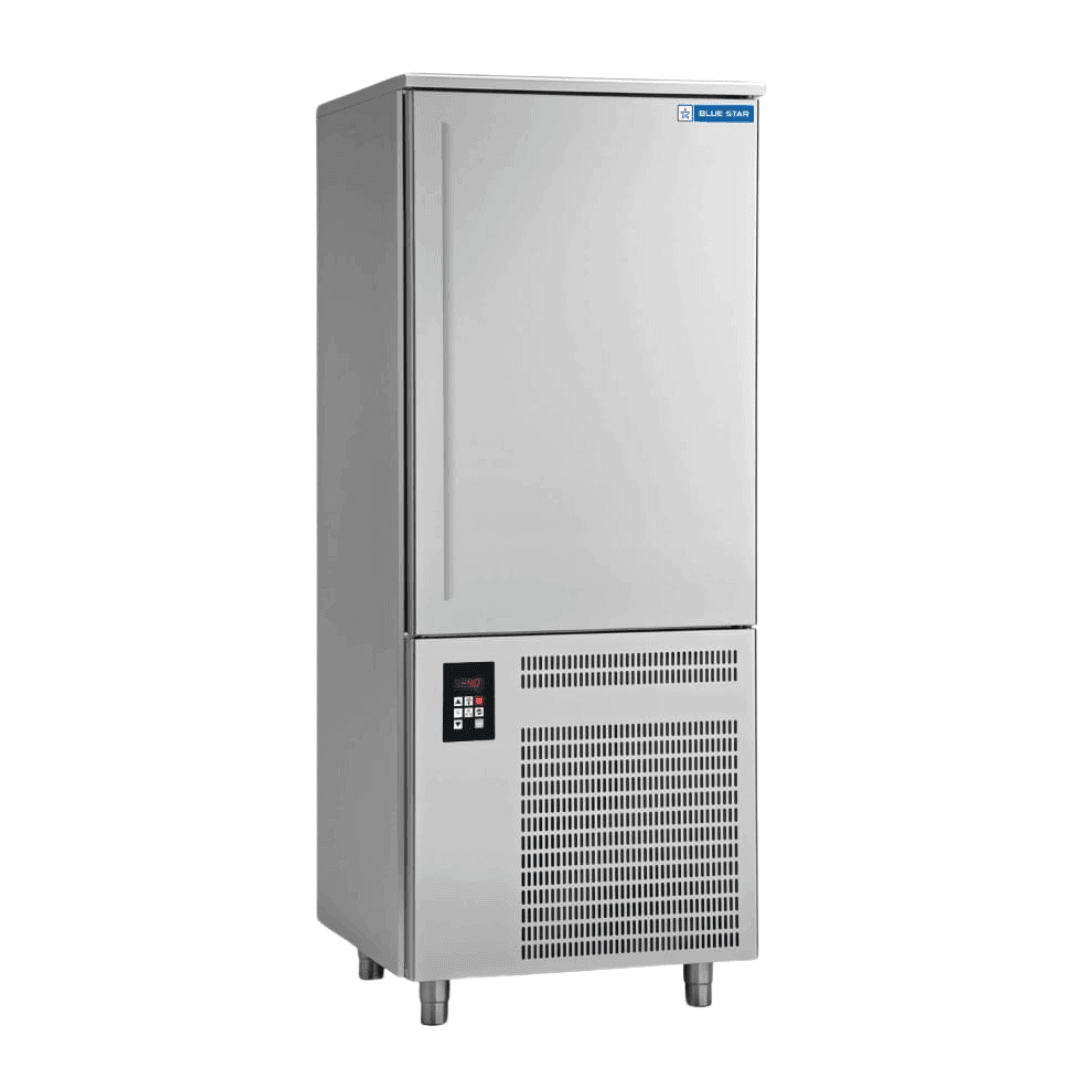

Technical Specifications: Blue Star BF10G 10 Pan Blast Freezer

Powerful Freezing Performance and Cycle Throughput

Cycle time performance determines whether a blast freezer supports or bottlenecks kitchen throughput. The BF10G drives food core temperature from +90°C to -18°C, transiting the bacterial danger zone between +63°C and +8°C rapidly enough to satisfy HACCP critical control point requirements. At 22 kg freezing volume and 34 kg chilling volume per cycle, the unit accommodates a full batch of prepared proteins, sauces, or pastry components without splitting loads across multiple runs. Rapid and uniform freezing across all 10 shelves is achieved through an advanced air circulation system that eliminates hot spots and maintains consistent temperatures throughout the cabinet, preventing the large ice crystal formation that degrades cellular structure and increases drip loss.

Blast Chilling vs Blast Freezing Modes

The BF10G operates in both blast chilling mode (+90°C to +3°C, 34 kg capacity) for short-term cold chain storage and blast freezing mode (+90°C to -18°C, 22 kg capacity) for long-term preservation, giving operators a single unit that covers both HACCP-compliant cooling cycles without switching equipment.

GN Pan Compatibility and Kitchen Integration

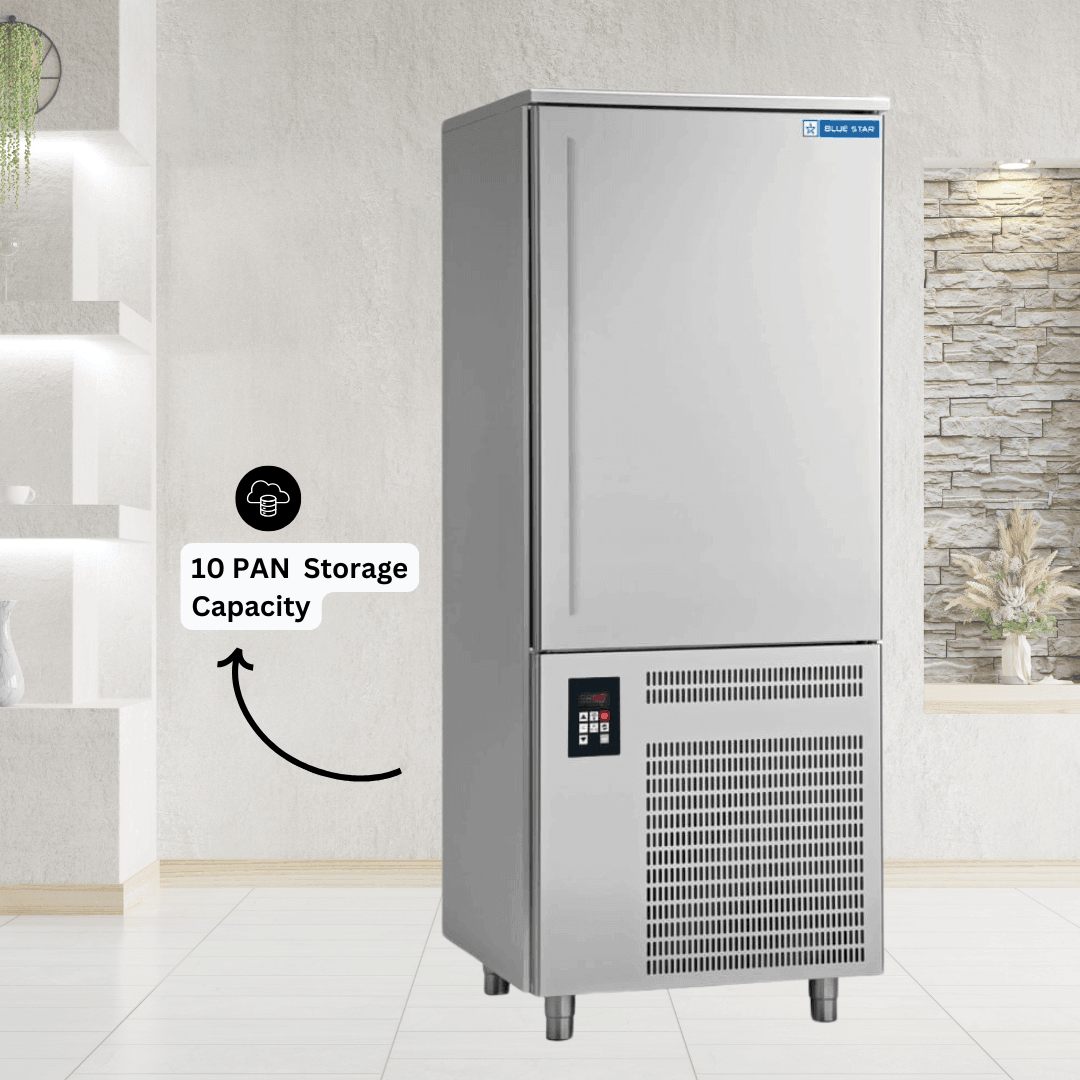

GN1/1 pan compatibility means hotel pans, prep trays, and portioned components transfer directly from cooking equipment into the BF10G without repackaging. Ten shelves accommodate a full 10 GN pan load simultaneously, which is critical for food processing units and cloud kitchens running continuous production cycles. External dimensions of 800 x 780 x 1700 mm allow the unit to pass through standard service corridors, and the 145 kg unit weight is manageable with standard kitchen installation equipment. The solid door design protects cabinet temperature during loading and unloading, maintaining cold chain integrity across each cycle.

Precision Temperature Control with Time and Probe Based Settings

A core temperature probe inserted into food allows the BF10G to end a cycle based on actual food core temperature rather than elapsed time alone, which is the operationally correct method for variable batch sizes and densities. Time based settings provide an alternative for standardised recipes where cycle duration is known and consistent. The electronic temperature display gives operators precise monitoring of internal conditions in real time, and the adjustable thermostat supports flexible temperature settings to meet specific food requirements across proteins, baked goods, and bulk ingredients. Probe based chilling and freezing settings reduce both overcooling energy consumption and undercooling food safety risk simultaneously.

Durable and Hygienic Construction for Professional Kitchens

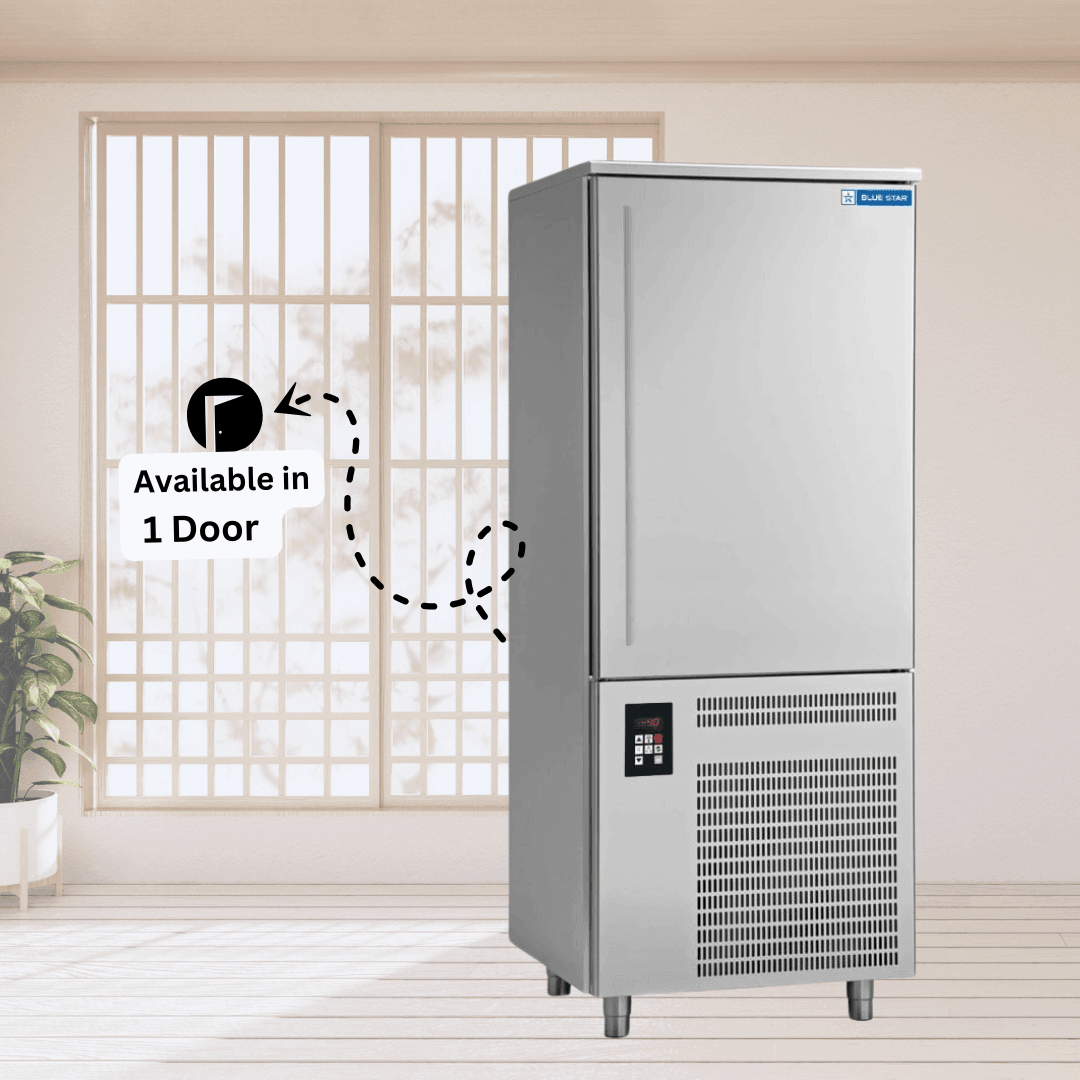

SS304 stainless steel on the inner and outer body provides long-lasting durability alongside resistance to corrosion from cleaning agents, food acids, and high-humidity kitchen environments. The same material choice supports optimal hygiene standards because SS304 is non-porous, inhibits bacterial growth on contact surfaces, and withstands the high-temperature wash cycles required in industrial kitchens and cafes bakeries operating under food safety regulations. The automatic defrost system prevents ice buildup without manual effort, and accessible components reduce downtime during routine maintenance. A 1-year compressor warranty covers the 2010W tropicalized compressor for operational peace of mind in demanding environments.

Power Compatibility and Refrigerant for Indian Operating Conditions

Single-phase operation at 230V and 50 Hz means the BF10G connects to standard electrical infrastructure without requiring three-phase supply upgrades, which directly reduces installation costs for restaurants, hotels, and food processing units. The tropicalized compressor is engineered specifically for hot Indian conditions, maintaining consistent temperature control when ambient temperatures exceed the range that standard compressors are rated for. R404A refrigerant at 1600G charge delivers fast and efficient cooling across both chilling and freezing cycles. Operators should note that R404A carries a high Global Warming Potential rating, which is a refrigerant compliance consideration in commercial kitchen procurement planning.

Applications: Where the BF10G Blast Freezer Delivers Consistent Results

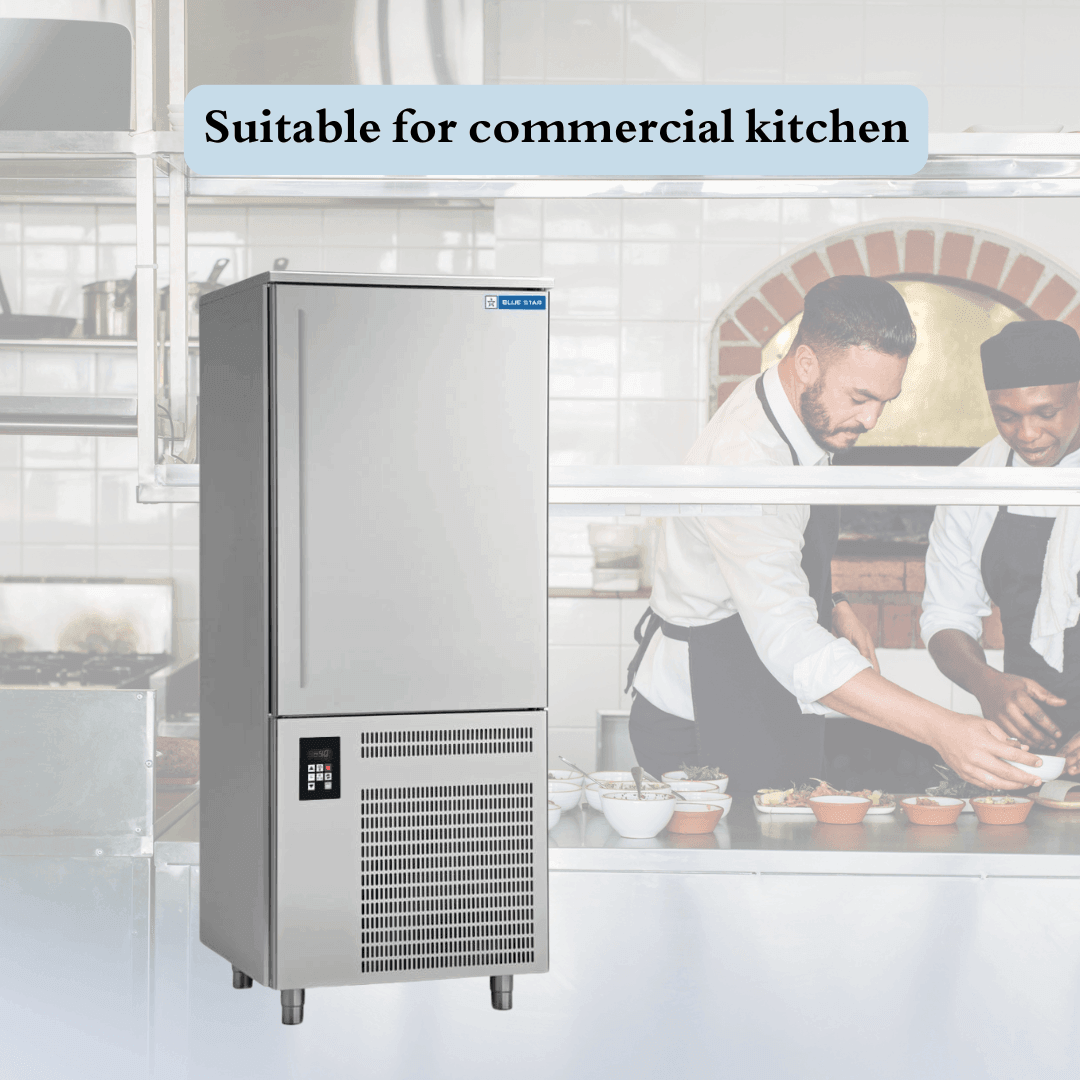

Hotels, cloud kitchens, bakeries, and food processing units requiring rapid and uniform freezing of large batch volumes are the primary operational fit for the BF10G. Catering businesses freeze prepared meals and individual portions in advance for events, maintaining consistent quality and reducing food waste from spoilage. Industrial kitchens running room service or banquet operations use the 10 pan capacity to process multiple food items simultaneously. Research laboratories and healthcare facilities requiring frozen storage of biological samples and medical samples benefit from the precise monitoring and consistent temperatures the digital display and probe settings provide.

Frequently Asked Questions: Blue Star BF10G 10 Pan Blast Freezer

What is the chilling and freezing capacity of the Blue Star BF10G?

The BF10G chills 34 kg per cycle from +90°C to +3°C and freezes 22 kg per cycle from +90°C to -18°C. It holds 10 GN1/1 standard pans across 10 shelves. These figures determine whether the unit can handle your batch volumes without becoming a production bottleneck during peak service periods.

Does the BF10G require three-phase electrical supply?

No. The BF10G operates on single-phase 230V at 50 Hz with a 2010W power draw. Standard single-phase supply is sufficient for installation. No three-phase infrastructure upgrade is required, which simplifies commissioning in most commercial kitchen environments across India.

How does the probe based setting differ from time based operation?

Probe based operation ends the cycle when the food core reaches the target temperature, regardless of elapsed time. Time based operation runs for a preset duration. Probe mode is more accurate for variable batch sizes and densities, reducing both energy consumption and the risk of undercooling food through the bacterial danger zone.

What are the external dimensions and unit weight of the BF10G?

External dimensions are 800 mm wide by 780 mm deep by 1700 mm tall. Unit weight is 145 kg. Package dimensions are 850 x 870 x 1920 mm at 168 kg. These figures determine whether the unit fits your kitchen footprint and can pass through service corridors during installation.

Is the Blue Star BF10G suitable for HACCP compliant kitchen operations?

Yes. The BF10G transits food through the bacterial danger zone (+63°C to +8°C) rapidly by driving temperature from +90°C to either +3°C or -18°C in a single cycle. The digital temperature display, core temperature probe, and automatic defrost system support the monitoring and documentation requirements of HACCP critical control points.

Blue Star BF10G 10 Pan Blast Freezer: Operational Fit Summary

The BF10G delivers HACCP-compliant blast chilling and blast freezing across 10 GN1/1 pans in a single-phase 2010W unit built from SS304 stainless steel for professional kitchens operating in Indian conditions. A 34 kg chilling volume and 22 kg freezing volume per cycle support continuous production in hotels, cloud kitchens, bakeries, and food processing units without infrastructure upgrades. Probe based and time based temperature settings, an automatic defrost system, and a clear digital display give operators precise control over every cycle. Manufactured in India by Blue Star Limited, the BF10G10Pan carries a 1-year compressor warranty and is backed by a nationwide service network.
